Quality Assurance opening and filling machine fiber

FOB Reference Price:Get Latest Price
$5,500.00 - $7,500.00 / Sets | 1 Set/Sets (Min. Order)
Power:
8.45kw
Model Number:
PKS-428
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Other
Packaging Material:
Other
Type:
Filling Machine
Applicable Industries:
Filling machine
Condition:
New
Application:
Other
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
220V,380V
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
luolai
Dimension(L*W*H):
3880mm*1450mm*1000mm
Weight:
500kg
Certification:
CE,ISO9001
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Supply Ability
Supply Ability:
4 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case package
Port
according to our offer
Product Description

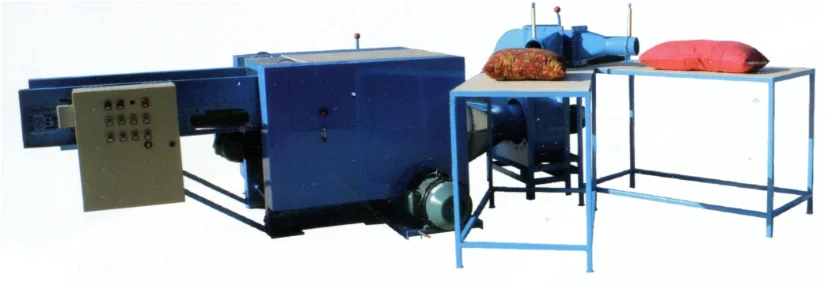

PKS-428 opening filling machine is suitable for down products factory,textile products factory adn PP fiber processing enterprises.Because of its reasonable design,good looking appearance,high performance and easy operatein,it is trusted by user.
typeopening filling machine
model numberPKS-428
power8.45kw
driven typeelectric
weight500kgs
size3880mm*1450mm*1000mm
houry capacity180-250kgs
packingwooden case package
usageopening and filling fibers
term of paymnent30% T/T in advance,70% balance against bill of lading
delivery timewithin 30 days after receiving the deposit




Characteristics of Product



1.The use of advanced science and technology, the use of multiple tear pull technology, the most difficult to open the domestic and foreign three-dimensional chemical fiber can be a one-time open pine, the rate of 99%.

2.After many years of production experience and user feedback, and the use of user feedback, and the technical transformation of our technical personnel, in the fiber system, the use of the replacement of the original process of the complex, maintenance difficulties, the old type of old type of traditional gear box. After the improvement, can greatly improve the feeding schedule, timely troubleshooting, convenient, simple operation. Make the product have further improve.

3.After the opening of the need to dust, from the suction device to automatically inhale the bag, so as to ensure that no impurities in chemical fiber, especially for foreign trade products, equivalent to a number of steps to increase the safety and security. At the same time to ensure the physical condition of the operator.







Installation and Adjustment





1.Machine should be operated by specially-assigned person who understands performance, structure and principle of machine.

2.Before starting, check all the rotating parts and bolts if there is a loose, fall off phenomenon. In the sprocket, gear and other drive part of the right amount of oil. To determine steering, start the motor, due to tooth and started running speed is higher, to be tooth and to normal operation, uniform feeding. Parking must be standby before all the raw materials, and then cut off the power supply.
